House in Sea Girt, Jersey Shore

Nestled in beautiful Sea Girt, just blocks from the coast, the homeowner's requested a facelift worthy of the predominant shingle style architecture of the area. To break-up the monolithic form and blank 'face' of the existing house, a small 2nd floor addition includes a walk-in closet off the primary bedroom, office space and 2nd floor laundry room.

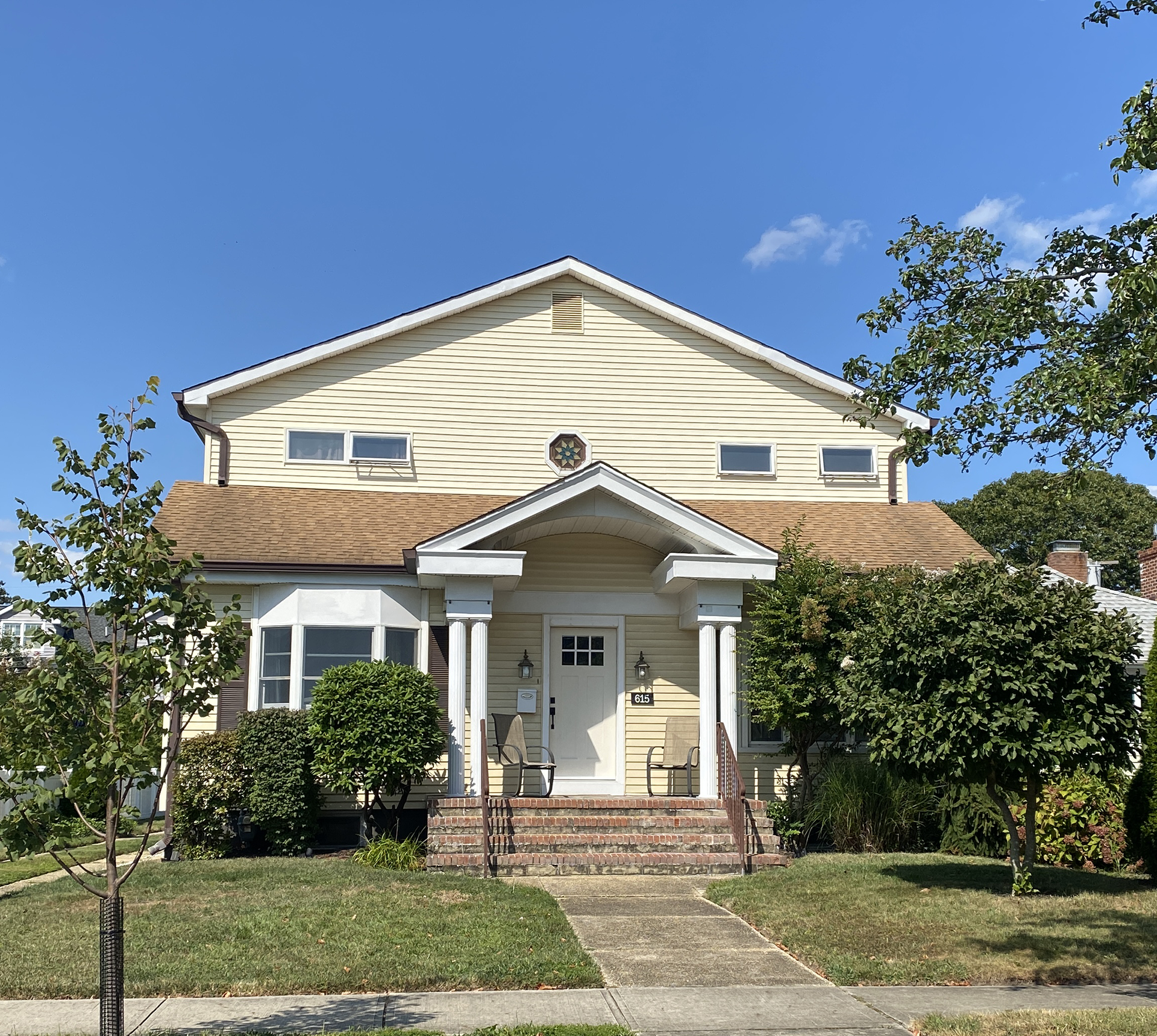

~ BEFORE ~

We initiate our Schematic Design phase by presenting clients with approx. three design options, as demonstrated through the drawings below. The purpose of this initial investigation is to visually evaluate floor plan layouts and iterations of exterior styles through series of sketches that culminate in a final design decision, prior to moving into the final technical drawing phase.

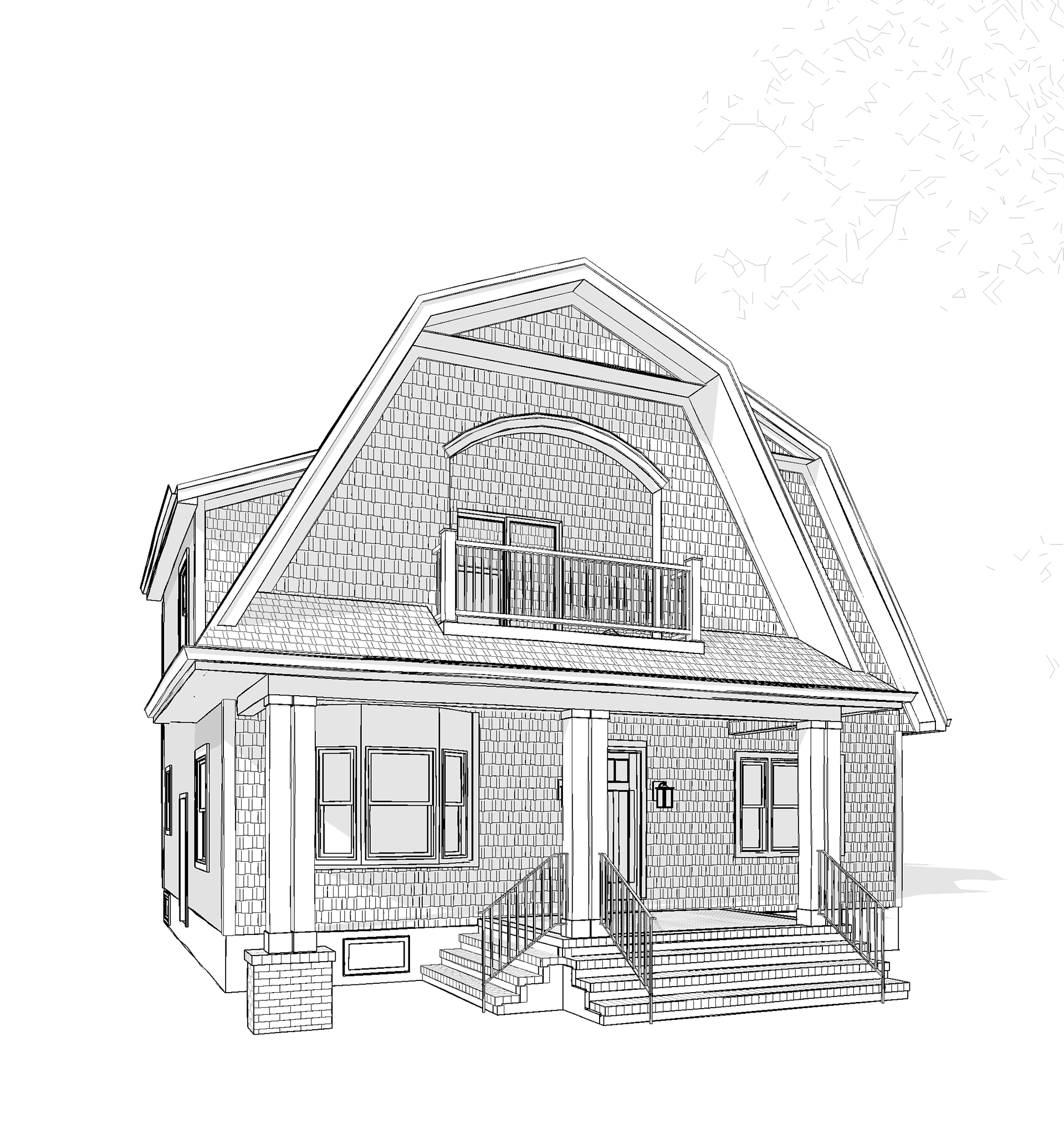

3D VIEW
SCHEMATIC DESIGN ~ OPTION A
ELEVATION
SCHEMATIC DESIGN ~ OPTION A

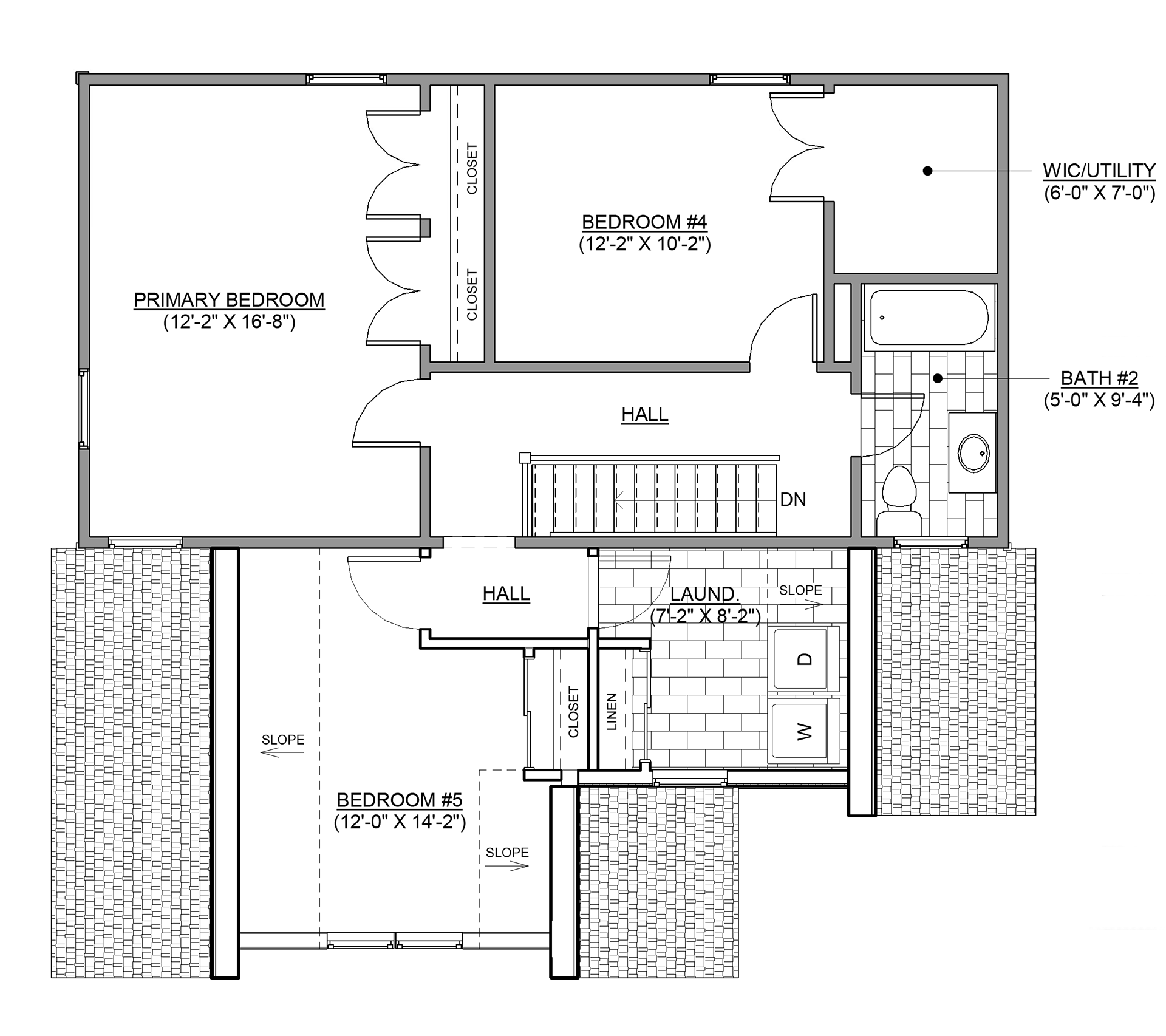

2ND FLOOR PLAN

SCHEMATIC DESIGN ~ OPTION A

3D VIEW
SCHEMATIC DESIGN ~ OPTION B
FRONT ELEVATION
SCHEMATIC DESIGN ~ OPTION B
2ND FLOOR PLAN
SCHEMATIC DESIGN ~ OPTION B
3D VIEW
SCHEMATIC DESIGN ~ OPTION C
FRONT ELEVATION
SCHEMATIC DESIGN ~ OPTION C
2ND FLOOR PLAN
SCHEMATIC DESIGN ~ OPTION C
